Fittings 75 to 79
Type 75 - Collar

Tube Reference

mm

Bolt Hole

Kg

Type

A

B

C

D

E

F

G

H

Diameter

75-4

4


23



0.05

75-5

5


26



0.13

75-6

6


26



0.13

75-7

7


26



0.15

75-8

8


26



0.19



A collar commonly used to support another Kee Klamp fitting of the latter is required to be left untightened (ie on gate hinges). Type 75 is also useful when loading on a structure exceeds the maximum permitted slip load for a socket set screw, as it gives extra support.


Type 76 - Hook

Tube Reference

mm

Bolt Hole

Kg

Type

A

B

C

D

E

F

G

H

Diameter

76-5

5

30

27

9


0.17

76-6

6

35

27

13


0.21

76-7

7

38

27

13


0.23

76-8

8

41

27

13


0.24



A fitting normally used for the attachment of chains.


Type 77 - Plastic Plug

Tube Reference

mm

Bolt Hole

Kg

Type

A

B

C

D

E

F

G

H

Diameter

77-4

4







0.001

77-5

5







0.004

77-6

6







0.007

77-7

7







0.016

77-8

8







0.020

77-9

9







0.025



A plastic plug to fit open ended tubes. See also fitting Type 84.

Note: Suitable for medium and heavy tubing only.

Type 78 - Eye Fitting

Tube Reference

mm

Bolt Hole

Kg

Type

A

B

C

D

E

F

G

H

Diameter

78-5

5

30

26


14

0.21

78-6

6

33

26


14

0.25

78-7

7

38

26


14

0.26

78-8

8

41

26


14

0.28



A fitting used in conjunction with Type 83 fittings for gate hinges.

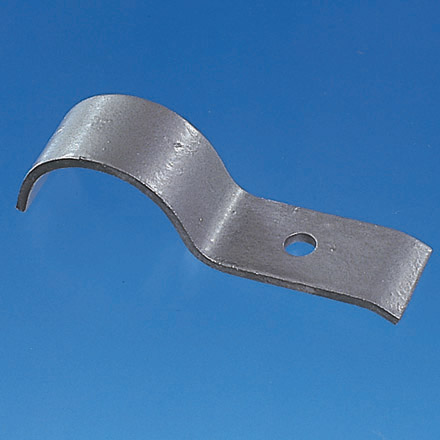

Type 79 - Sheeting Clip

Tube Reference

mm

Bolt Hole

Kg

Type

A

B

C

D

E

F

G

H

Diameter

79-7

7

46

34

8

21

0.08



This fitting is used to attach profiled sheeting material to Kee Klamp tube.
The fitting is supplied with a hexagonal head fixings bolt, M6x50mm long, a sealing washer, and nut.
